.125” wall extruded aluminum, alloy 6063-T6
Profiles
6" | 8" | 8” C-Channel | 10” | 12”
Optional 4" crown molding or 2” angle extensions
.075” wall extruded aluminum, alloy 6063-T6 self mating roof pans
Standard 8" extruded aluminum
Optional 6" extruded aluminum
Standard Scupper
Optional Downspout
2" Diagonal support tube
Cantilevered bracket option
Frame: 5 year warranty
Installation: 1 year warranty
Finish:
10 year Standard polyester powder coat finish meets AAMA 2604
20 year Two-Coat Fluoropolymer (Kynar) finish, AAMA 605.2

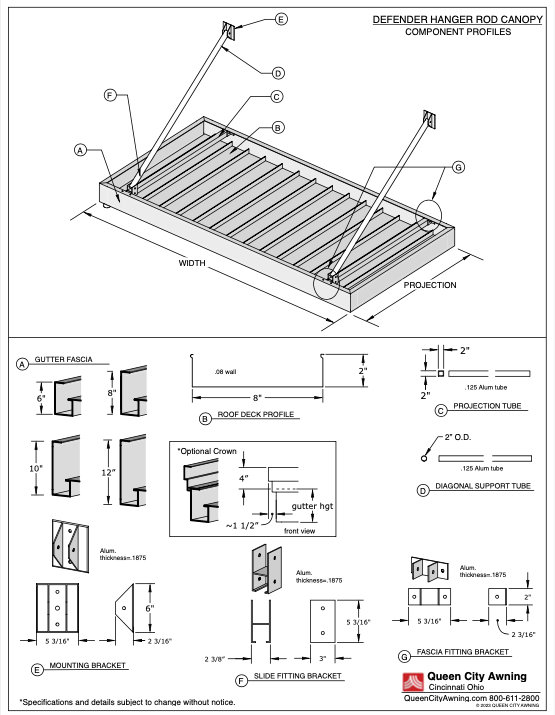

Component Profiles

Color Chart

Specifications

Care and Maintenance
