.125” wall extruded aluminum, alloy 6063-T6
Profiles
6" | 8" | 8” C-Channel | 10” | 12”
Optional 4" crown molding or 2” angle extensions
.075” wall extruded aluminum, alloy 6063-T6 self mating roof pans
Standard 8" extruded aluminum
Optional 6" extruded aluminum
Water drains to standard scupper from roof panels
Optional Downspout with internal drainage
Extruded aluminum posts made to size per job requirements
Standard powder coat finish to be polyester powder coated to meet AAMA 2604.
Optional finish: Two-coat Kynar finish.
Frame: 5 year warranty
Installation: 1 year warranty
Finish:
10 year Standard polyester powder coat finish meets AAMA 2604
20 year Two-Coat Fluoropolymer (Kynar) finish, AAMA 605.2

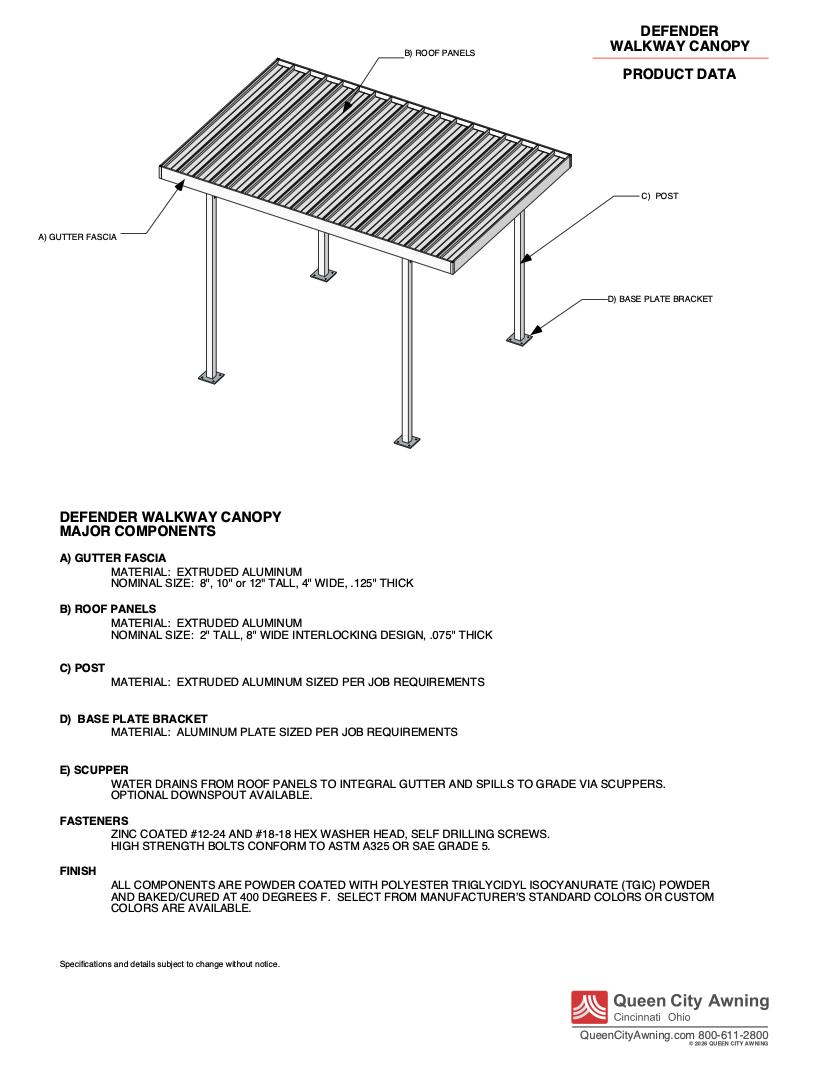

Component Data

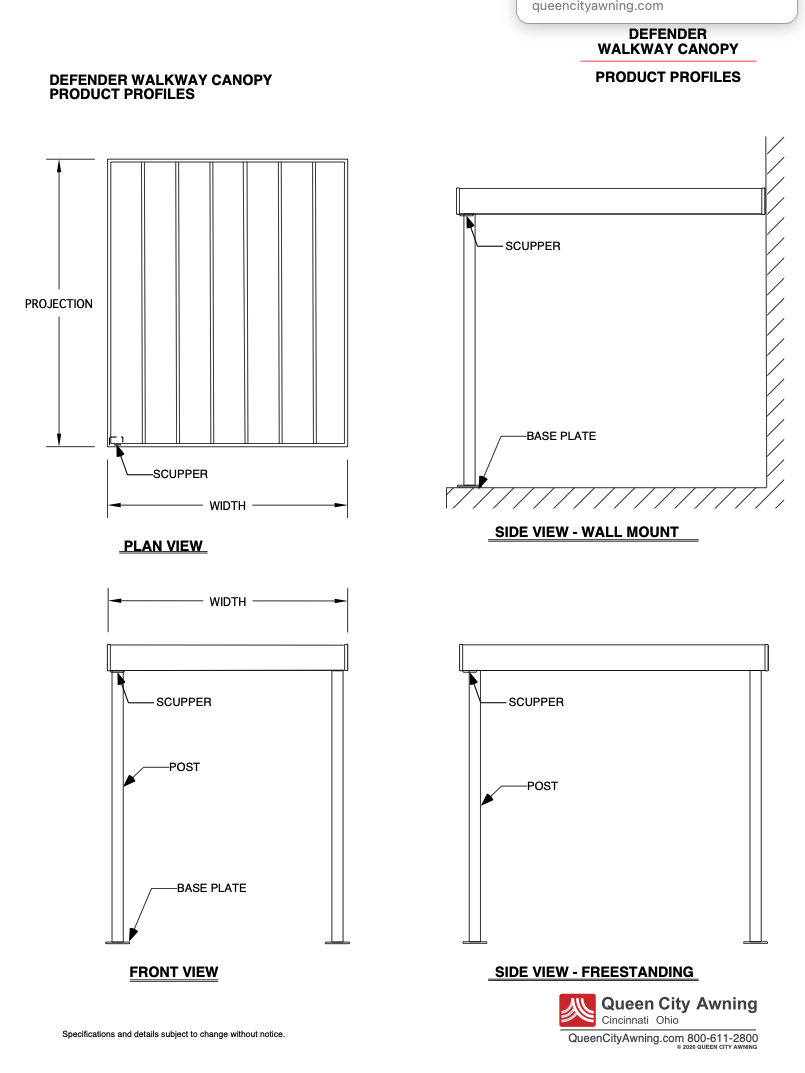

Product Profiles

Product Brochure

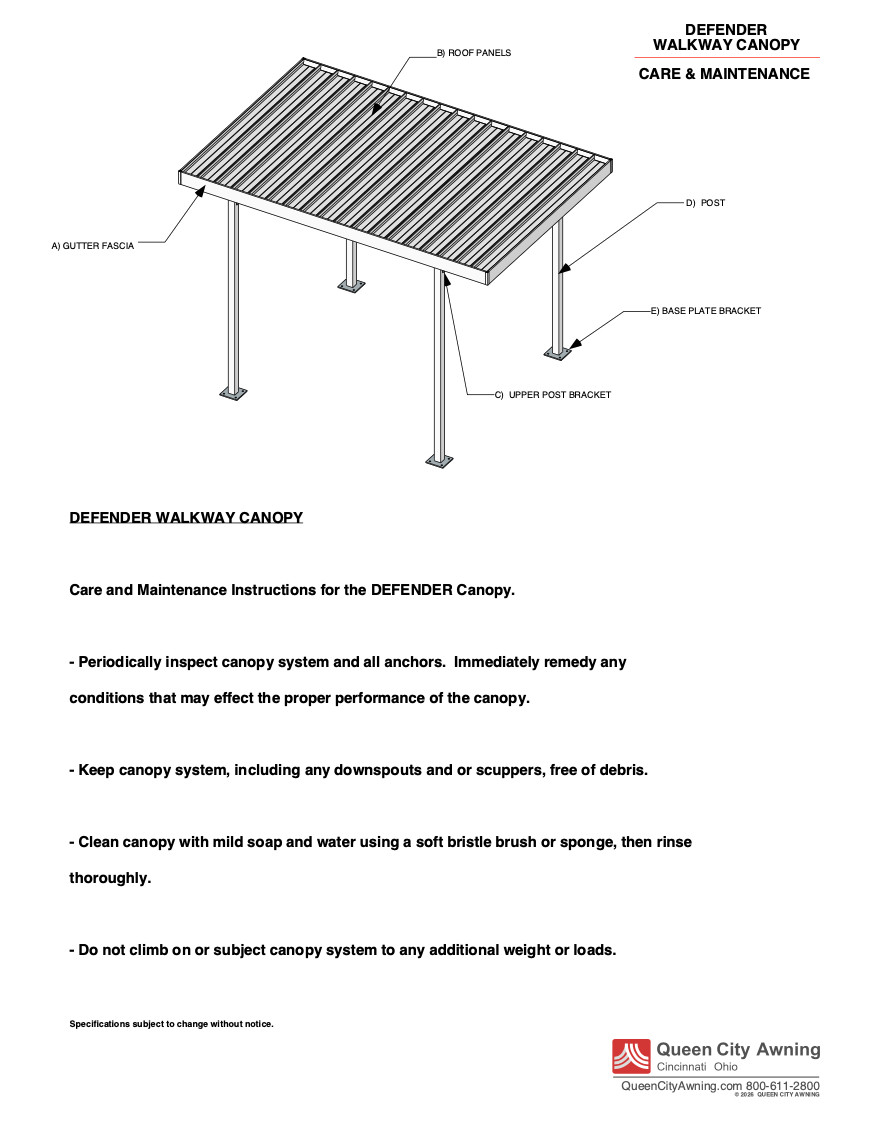

Care and Maintenance
